ICL1103B Single Channel HV Constant Current LED Driver

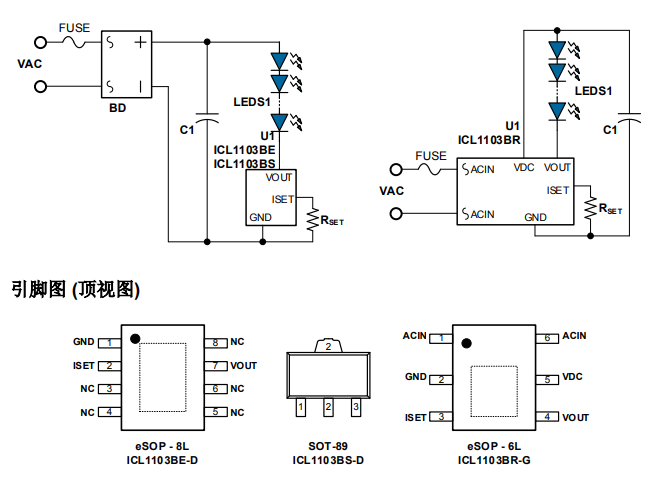

ICL1103B is a single channel high voltage linear constant current LED driver, which integrates 500V high voltage MOS. The output current can be set through an external resistor between 5mA and 80mA. I...
ICL1103B is a single channel high voltage linear constant current LED driver, which integrates 500V high voltage MOS. The output current can be set through an external resistor between 5mA and 80mA. ICL1103 built-in linear type thermal protection function to effectively prevent damage to the system caused by high temperature. ICL1103 system has simple peripherals, flexible application, high reliability, small volume, low system BOM cost, adjustable packaging technology can be applied to all kinds of LED lamps.
550V/ 80mA HV NMOS integrated.
Constant current control technology.
System efficiency up to 93%.
Linear type thermal protection function.
NO EMI issue.
Various thermal protection trip temperature
available.

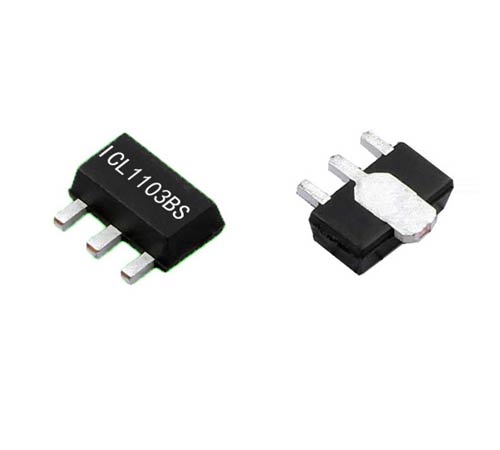

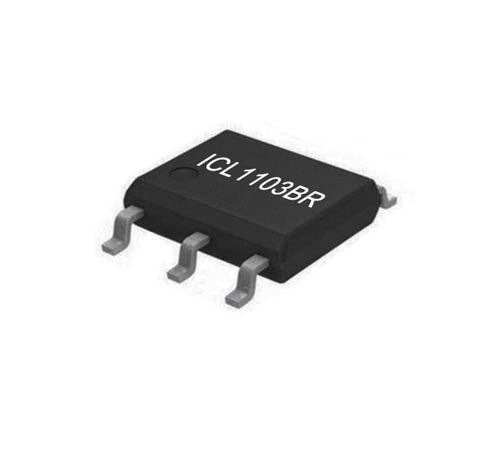

eSOP-8L,SOT-89-3, SOP-6L
| 產品型號 | 驅動類型 | 輸入電壓 | 輸出電流 | 封裝方式 | 簡單描述 |
| IML8673NL-TR | AC-DC | 110V/220V | 180mA | DFN2*2mm-6L | 高壓性線 |
| IML8674LL-TR | AC-DC | 110V/220V | 180mA | DFN3*3mm-10L | 高壓性線 |
| IML8676CL-TR | AC-DC | 110V/220V | 180mA | DFN3*3mm-8L | 高壓性線 |
| IML8684BP-ADJ-TR | AC-DC | 110V/220V | 150mA | SOT-89 | 高壓性線 |
| IML8684NL-ADJ-TR | AC-DC | 110V/220V | 150mA | DFN2*2mm-6L | 高壓性線 |
| IML8685AE-TR | Active | 110V/220V | 75mA | TSOT23-3L | 高壓性線 |
| IML8686AK-TR | AC-DC | 110V/220V | 250mA | SOT-223 | 高壓性線 |
| IML8686AP-TR | AC-DC | 110V/220V | 150mA | SOP89-3 | 高壓性線 |
| IML8686APA-TR | AC-DC | 110V/220V | 160mA | SOP89-3 | 高壓性線 |
| IML8686APB-TR | AC-DC | 110V/220V | 110mA | SOP89-3 | 高壓性線 |
| IML8690NL-TR | AC-DC | 110V/220V | 30W | DFN2*2mm-6L | 高壓性線 |
| IML8693NE-TR | AC-DC | 110V/220V | 30W | TSOT23-6L | 高壓性線 |
| IML8691CL-TR | Dimming | 110V/220V | / | DFN3*3mm-8L | PWM調光 |
| IML8692CFA-TR | AC-DC | 110V/220V | 25W | SOP-8L | 高壓性線 可控硅調光 |
| IML3160AK | MOS | 600V | 1.5A | SOT-223 | 功率MOS管 |
| AMC7140 | DC-DC | 5-80V | 700mA | TO-252-5L | 線性降壓 |
| ICL1701 | DC-DC | 5-75V | 1.5A | TO252-5L | 線性降壓 |
| ICL1702 | DC-DC | 5-40V | 700mA | ESop-8/TO252-5L | 線性降壓 |
| ICL9201 | 40V | 50mA | SOT-23 | 去頻閃IC | |
| ICL1101 | AC-DC | 110V/220V | 7/14/21/28mA | 70*70UM2 | 高壓性線 |
| ICL1102 | AC-DC | 110V/220V | 100mA | SOT89/ESOP8/TO252 | 550V高壓性線恒流IC |
| ICL1103 | AC-DC | 110V/220V | 60mA | SOT89/ESOP8/HSOP-7 | 550V高壓性線恒流IC |
| ICL1104 | AC-DC | 110V/220V | 100mA | SOT89/ESOP8/TO252 | 650V高壓性線恒流IC |
| ICL1202 | AC-DC | 110V/220V | 100mA | eSOP-8 | 智能調光線性恒流IC |
| ICL1402/ICL1403 | AC-DC | 110V/220V | 100mA*2 | eSOP-8 | 雙通道高壓性線恒流IC |
| ICNE2521DE/A/B | AC-DC | 110V/220V | 100mA | eSOP-8 | 高壓性線 |
| ICNE2521DS/A/B | AC-DC | 110V/220V | 100mA | SOT-89-3 | 高壓性線 |
| ICNE2521DT/A/B | AC-DC | 110V/220V | 100mA | TO-252-3L | 高壓性線 |
| ICNE2530DE | AC-DC | 110V/220V | 100mA*2 | eSOP-8 | 雙通道高壓性線恒流IC |
| ICNE2531 | AC-DC | 110V/220V | 100mA | eSOP-8 | 可控硅調光高壓性線 |
| ICL3101 | AC-DC | 85V-265V | 150-220mA | SOT-33-4L/SOP-7L | 非隔離降壓恒流去VCC |
| ICL3102 | AC-DC | 85V-265V | 220-600mA | SOP-7L/DIP-7L | 非隔離降壓恒流去VCC |
| ICL9101AP | 開關調光 | 85V-265V | 300mA | SOP-8L | 帶記憶雙通道調色溫 |
| ICL9104AP | 開關調光 | 85V-265V | 280mA | SOP-8L | 帶記憶雙通道調色溫 |
